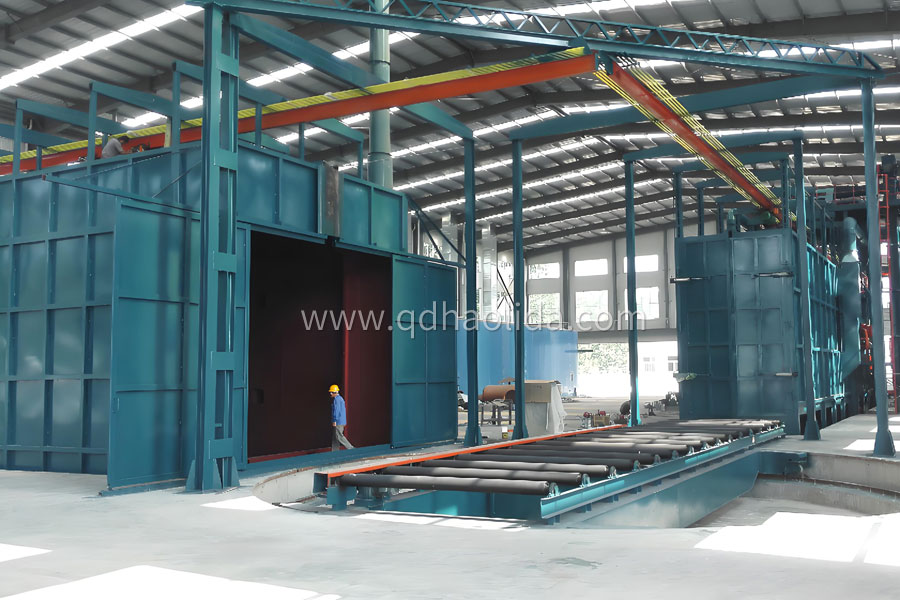

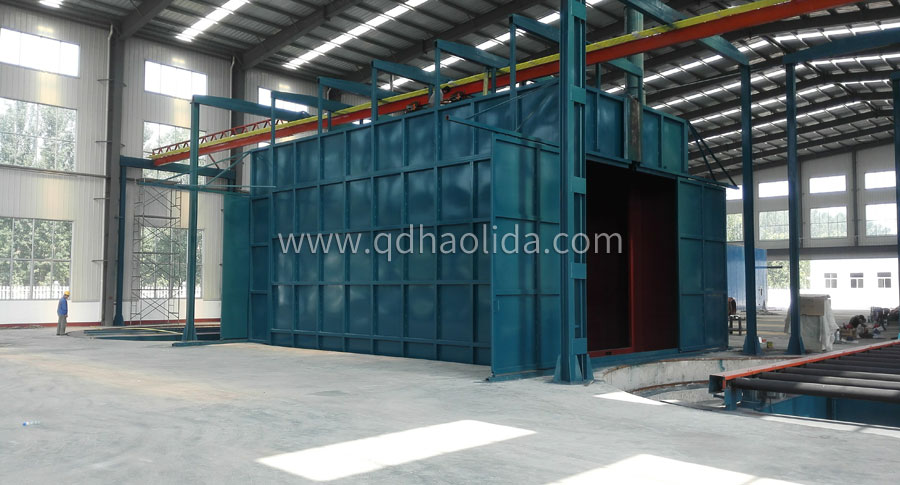

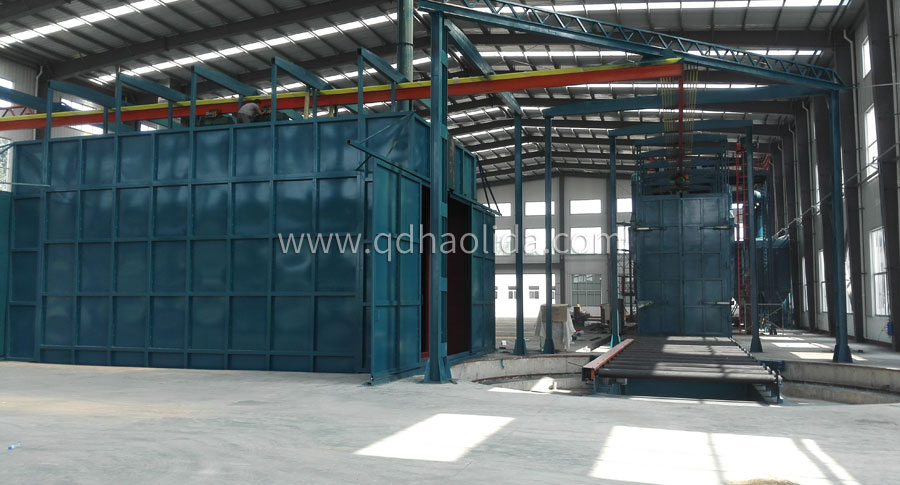

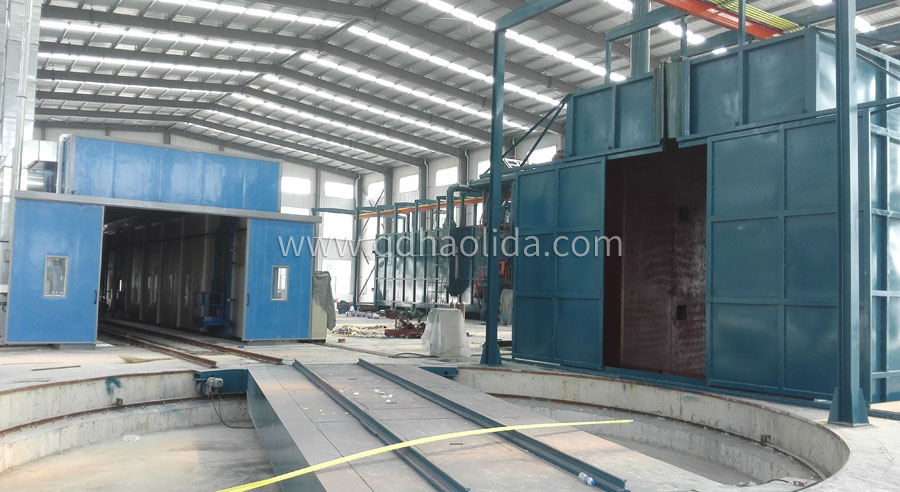

Name: Large Scale Component Abrator for Engineering Machinery and Construction Machinery
Instruction: Q37 series engineering machinery abrator fits for engineering machinery and architecture machinery industry, the working principle: workpieces are driven to assistant cleaning room by two frequency control electric hoist, then pass impeller blasting room with even speed to carry out impeller blasting for the parts. Orbit of lifting hook can adopt ring structure, the electric hoist will return to loading position after discharging. Loading, impeller blasting and discharging procedure can be carried out if three groups of electric hoists are equipped, then the efficiency and effect can be improved.
Purpose: fit for surface treatment and intensification of steel structures, castings, aluminum alloy and other parts and components.
| Item | Type | QHH3750 | QW3750 | Q3750H |
| Loading capacity of trolley | t | 10 | 10 | 10 |
| Hanging ability of one hook | t | 5 | 5 | 5 |
| First installed volume | kg | 11000 | 13000 | 15000 |
| Impeller blasting volume | kg/min | 12*230 | 12*230 | 12*250 |
| Ventilation volume | m3/h | 25000 | 28000 | 27000 |
| Gross Weight | t | 134 | 155.5 | 106.5 |
| Gross power | kw | 440 | 460 | 378.5 |
